产品介绍:

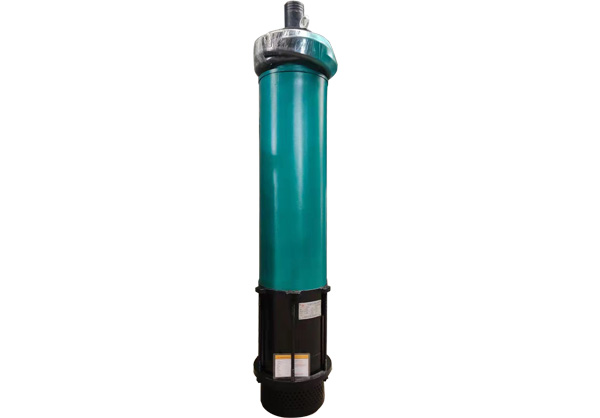

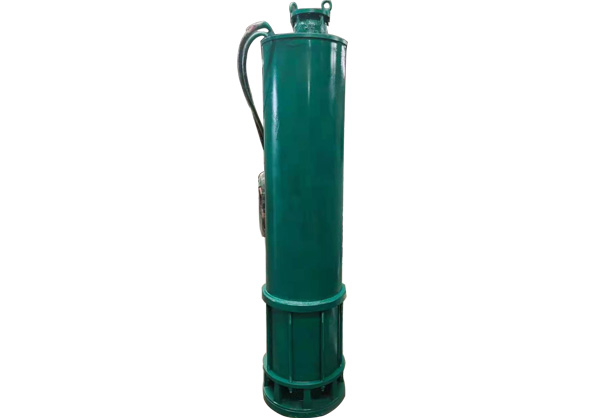

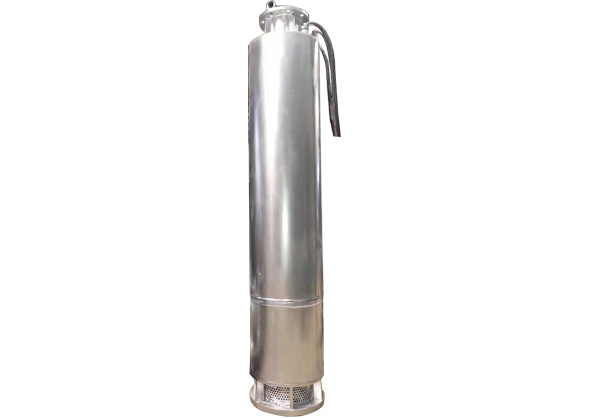

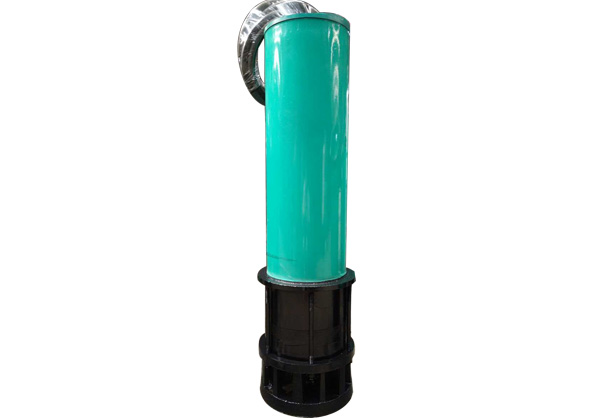

底吸式污水泵适用于各种恶劣环境下抽送污水、污泥。因为是底吸式的，所以可完全排出工作地面积水。采用三相异步电动机。占地面积小，安装方便，使用寿命长。
应用领域:

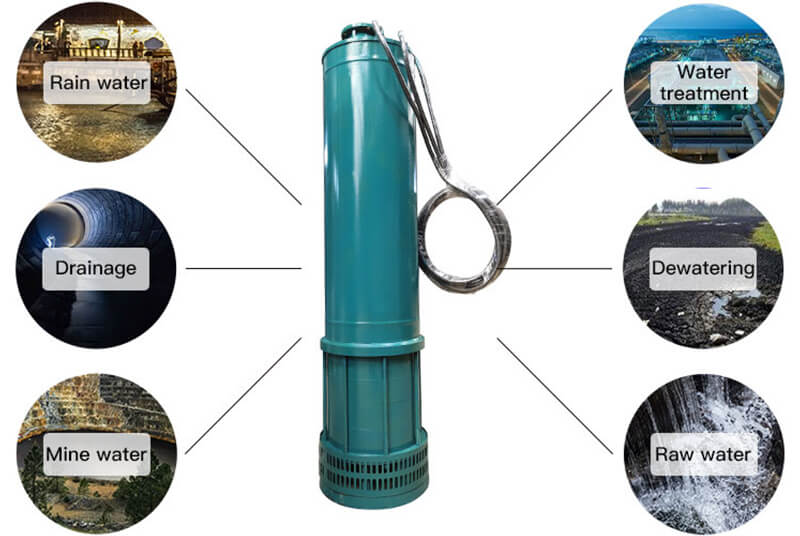

潜水底吸泵主要用于矿山或河流。高扬程、多级。
技术参数:
| 型号 | 流量 (m³/h) | 扬程 (m) | 功率 (kw) | 功率 (hp) |
| WQX12.5-40 | 12.5 | 40 | 3 | 4 |
| WQX12.5-100 | 12.5 | 100 | 7.5 | 10 |
| WQX12.5-160 | 12.5 | 160 | 13 | 18 |
| WQX12.5-180 | 12.5 | 180 | 15 | 20 |
| WQX12.5-200 | 12.5 | 200 | 18.5 | 25 |
| WQX15-50 | 15 | 50 | 4 | 4 |
| WQX15-70 | 15 | 70 | 5.5 | 7 |
| WQX15-110 | 15 | 110 | 9.2 | 13 |
| WQX15-130 | 15 | 130 | 11 | 15 |
| WQX15-170 | 15 | 170 | 15 | 20 |
| WQX15-190 | 15 | 190 | 18.5 | 25 |
| WQX20-80 | 20 | 80 | 7.5 | 10 |
| WQX20-120 | 20 | 120 | 15 | 20 |
| WQX20-170 | 20 | 170 | 18.5 | 25 |
| WQX25-17 | 25 | 17 | 3 | 4 |
| WQX30-60 | 30 | 60 | 11 | 15 |
| WQX30-150 | 30 | 150 | 22 | 30 |
| WQX40-60 | 40 | 60 | 13 | 18 |
| WQX40-80 | 40 | 80 | 15 | 20 |
| WQX50-30 | 50 | 30 | 9.2 | 13 |
| WQX50-100 | 50 | 100 | 30 | 40 |
| WQX50-120 | 50 | 120 | 37 | 50 |
| WQX70-40 | 70 | 40 | 13 | 18 |
| WQX80-40 | 80 | 40 | 15 | 20 |
| WQX80-60 | 80 | 60 | 25 | 35 |
| WQX80-130 | 80 | 130 | 55 | 75 |
| WQX100-30 | 100 | 30 | 15 | 20 |
| WQX100-60 | 100 | 60 | 30 | 40 |
| WQX100-80 | 100 | 80 | 45 | 60 |
| WQX100-100 | 100 | 100 | 55 | 75 |
| WQX100-120 | 100 | 120 | 63 | 85 |
