产品介绍:

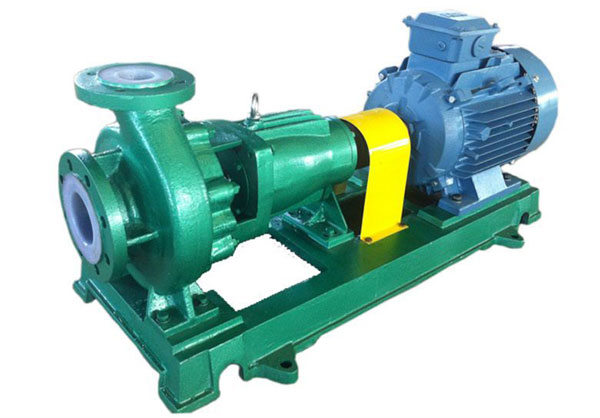

端吸水泵是最常见的离心泵类型之一。它们几乎都是单级、单吸的，也是最具成本效益的离心泵类型之一。单级端吸离心泵采用后抽结构，无需拆卸泵壳即可安装和更换叶轮、主轴和轴承。坚固的结构可以最大限度地减少水管的错位和变形。
所有端吸泵通常都有一个叶轮和一个蜗壳式壳体。当泵送的液体在进入蜗壳时速度增加，扩散过程将高速转化为高压时，它们就会工作。
应用领域:
▪ 给排水
▪ 暖通空调及冷却塔
▪ 增压及增压机组
▪ 灌溉及农业
▪ 给排水
▪ 食品及化工行业（采用不锈钢材质）
▪ 采矿及采石场除尘
技术参数:
| 序号 | 型号 | 转速 (r/min) |
流量 (m³/h) |
扬程 (m) |
功率 (kw) |
| 1 | IS/IR50-32-125 | 2900 | 12.5 | 20 | 2.2 |
| 2 | IS/IR50-32-125 | 1450 | 6.3 | 5 | 0.55 |
| 3 | IS/IR50-32-125A | 2900 | 11.2 | 16 | 1.1 |
| 4 | IS/IR50-32-160 | 2900 | 12.5 | 32 | 3 |
| 5 | IS/IR50-32-160 | 1450 | 5.9 | 7 | 0.55 |
| 6 | IS/IR50-32-160A | 2900 | 11.7 | 28 | 2.2 |
| 7 | IS/IR50-32-160B | 2900 | 10.8 | 24 | 1.5 |
| 8 | IS/IR50-32-200 | 2900 | 12.5 | 50 | 5.5 |
| 9 | IS/IR50-32-200 | 1450 | 6.3 | 12.5 | 0.75 |
| 10 | IS/IR50-32-200A | 2900 | 11.7 | 44 | 4 |
| 11 | IS/IR50-32-200A | 1450 | 5.9 | 11 | 0.55 |
| 12 | IS/IR50-32-200B | 2900 | 10.8 | 38 | 3 |
| 13 | IS/IR50-32-200B | 1450 | 5.4 | 9.5 | 0.55 |
| 14 | IS/IR50-32-250 | 2900 | 12.5 | 80 | 11 |
| 15 | IS/IR50-32-250 | 1450 | 6.3 | 20 | 1.5 |
| 16 | IS/IR50-32-250A | 2900 | 11.7 | 70 | 7.5 |
| 17 | IS/IR50-32-250A | 1450 | 5.9 | 17.5 | 1.5 |
| 18 | IS/IR50-32-250B | 2900 | 10.8 | 60 | 5.5 |
| 19 | IS/IR50-32-250B | 1450 | 5.4 | 15 | 1.1 |
| 20 | IS/IR65-50-125 | 2900 | 25 | 20 | 3 |
| 21 | IS/IR65-50-125 | 1450 | 12.5 | 5 | 0.55 |
| 22 | IS/IR65-50-125A | 2900 | 22.4 | 16 | 2.2 |
| 23 | IS/IR65-50-160 | 2900 | 25 | 32 | 5.5 |
| 24 | IS/IR65-50-160 | 1450 | 12.5 | 8 | 0.75 |
| 25 | IS/IR65-50-160A | 2900 | 23.4 | 28 | 4 |
| 26 | IS/IR65-50-160A | 1450 | 11.7 | 7 | 0.55 |
| 27 | IS/IR65-50-160B | 2900 | 21.7 | 24 | 3 |
| 28 | IS/IR65-40-200 | 2900 | 25 | 50 | 7.5 |
| 29 | IS/IR65-40-200 | 1450 | 12.5 | 12.5 | 1.1 |
| 30 | IS/IR65-40-200A | 2900 | 23.4 | 44 | 5.5 |
| 31 | IS/IR65-40-200A | 1450 | 11.7 | 11 | 0.75 |
| 32 | IS/IR65-40-200B | 2900 | 21.7 | 38 | 4 |
| 33 | IS/IR65-40-200B | 1450 | 10.8 | 9.5 | 0.55 |
| 34 | IS/IR65-40-250 | 2900 | 25 | 80 | 15 |
| 35 | IS/IR65-40-250 | 1450 | 12.5 | 20 | 2.2 |
| 36 | IS/IR65-40-250A | 2900 | 23.4 | 70 | 11 |
| 37 | IS/IR65-40-250A | 1450 | 11.7 | 17.5 | 2.2 |
| 38 | IS/IR65-40-250B | 2900 | 21.7 | 60 | 7.5 |
| 39 | IS/IR65-40-250B | 1450 | 10.8 | 15 | 1.1 |
| 40 | IS/IR65-40-315 | 2900 | 25 | 125 | 30 |
| 41 | IS/IR65-40-315 | 1450 | 12.5 | 32 | 4 |
| 42 | IS/IR65-40-315A | 2900 | 23.9 | 114 | 22 |
| 43 | IS/IR65-40-315A | 1450 | 11.9 | 28.5 | 4 |
| 44 | IS/IR65-40-315B | 2900 | 22.7 | 103 | 18.5 |
| 45 | IS/IR65-40-315B | 1450 | 11.3 | 25.8 | 3 |
| 46 | IS/IR65-40-315C | 2900 | 21.4 | 92 | 15 |
| 47 | IS/IR65-40-315C | 1450 | 10.7 | 23 | 2.2 |
| 48 | IS/IR80-65-125 | 2900 | 50 | 20 | 5.5 |
| 49 | IS/IR80-65-125 | 1450 | 25 | 5 | 0.75 |
| 50 | IS/IR80-65-125A | 2900 | 44.7 | 16 | 4 |
| 51 | IS/IR80-65-125A | 1450 | 22.4 | 4 | 0.55 |
| 52 | IS/IR80-65-160 | 2900 | 50 | 32 | 7.5 |
| 53 | IS/IR80-65-160 | 1450 | 25 | 8 | 1.5 |
| 54 | IS/IR80-65-160A | 2900 | 46.8 | 28 | 5.5 |
| 55 | IS/IR80-65-160A | 1450 | 23.4 | 7 | 0.75 |
| 56 | IS/IR80-65-160B | 2900 | 43.3 | 24 | 4 |
| 57 | IS/IR80-65-160B | 1450 | 21.7 | 6 | 0.55 |
| 58 | IS/IR80-50-200 | 2900 | 50 | 50 | 15 |
| 59 | IS/IR80-50-200 | 1450 | 25 | 12.5 | 2.2 |
| 60 | IS/IR80-50-200A | 2900 | 46.8 | 44 | 11 |
| 61 | IS/IR80-50-200A | 1450 | 23.4 | 11 | 1.5 |
| 62 | IS/IR80-50-200B | 2900 | 43.3 | 38 | 7.5 |
| 63 | IS/IR80-50-200B | 1450 | 21.7 | 9.5 | 1.1 |
| 64 | IS/IR80-50-250 | 2900 | 50 | 80 | 22 |
| 65 | IS/IR80-50-250 | 1450 | 25 | 20 | 3 |
| 66 | IS/IR80-50-250A | 2900 | 46.8 | 70 | 18.5 |
| 67 | IS/IR80-50-250A | 1450 | 23.4 | 17.5 | 3 |
| 68 | IS/IR80-50-250B | 2900 | 43.3 | 60 | 15 |
| 69 | IS/IR80-50-250B | 1450 | 21.7 | 15 | 2.2 |
| 70 | IS/IR80-50-315 | 2900 | 50 | 125 | 37 |
| 71 | IS/IR80-50-315 | 1450 | 25 | 32 | 5.5 |
| 72 | IS/IR80-50-315A | 2900 | 47.7 | 114 | 30 |
| 73 | IS/IR80-50-315A | 1450 | 23.8 | 28.5 | 5.5 |
| 74 | IS/IR80-50-315B | 2900 | 45.4 | 103 | 30 |
| 75 | IS/IR80-50-315B | 1450 | 22.7 | 25.8 | 5.5 |
| 76 | IS/IR80-50-315C | 2900 | 42.9 | 92 | 22 |
| 77 | IS/IR80-50-315C | 1450 | 21.4 | 23 | 4 |
| 78 | IS/IR100-80-125 | 2900 | 100 | 20 | 11 |
| 79 | IS/IR100-80-125 | 1450 | 50 | 5 | 1.5 |
| 80 | IS/IR100-80-125A | 2900 | 89.4 | 16 | 7.5 |
| 81 | IS/IR100-80-125A | 1450 | 44.7 | 4 | 0.75 |
| 82 | IS/IR100-80-160 | 2900 | 100 | 32 | 15 |
| 83 | IS/IR100-80-160 | 1450 | 50 | 8 | 2.2 |
| 84 | IS/IR100-80-160A | 2900 | 93.5 | 28 | 11 |
| 85 | IS/IR100-80-160A | 1450 | 46.8 | 7 | 1.5 |
| 86 | IS/IR100-80-160B | 2900 | 83.5 | 22.3 | 7.5 |
| 87 | IS/IR100-80-160B | 1450 | 41.8 | 5.6 | 1.1 |
| 88 | IS/IR100-65-200 | 2900 | 100 | 50 | 22 |
| 89 | IS/IR100-65-200 | 1450 | 50 | 12.5 | 4 |
| 90 | IS/IR100-65-200A | 2900 | 93.5 | 44 | 18.5 |
| 91 | IS/IR100-65-200A | 1450 | 46.8 | 11 | 3 |
| 92 | IS/IR100-65-200B | 2900 | 86.6 | 38 | 15 |
| 93 | IS/IR100-65-200B | 1450 | 43.3 | 9.5 | 2.2 |
| 94 | IS/IR100-65-250 | 2900 | 100 | 80 | 37 |
| 95 | IS/IR100-65-250 | 1450 | 50 | 20 | 5.5 |
| 96 | IS/IR100-65-250A | 2900 | 93.5 | 70 | 30 |
| 97 | IS/IR100-65-250A | 1450 | 46.8 | 17.5 | 4 |
| 98 | IS/IR100-65-250B | 2900 | 86.6 | 60 | 22 |
| 99 | IS/IR100-65-250B | 1450 | 43.3 | 15 | 3 |
| 100 | IS/IR100-65-315 | 2900 | 100 | 125 | 75 |
| 101 | IS/IR100-65-315 | 1450 | 50 | 32 | 11 |
| 102 | IS/IR100-65-315A | 2900 | 95.5 | 114 | 55 |
| 103 | IS/IR100-65-315A | 1450 | 47.7 | 28.5 | 7.5 |
| 104 | IS/IR100-65-315B | 2900 | 90.8 | 103 | 45 |
| 105 | IS/IR100-65-315B | 1450 | 45.4 | 25.8 | 7.5 |
| 106 | IS/IR100-65-315C | 2900 | 85.8 | 92 | 37 |
| 107 | IS/IR100-65-315C | 1450 | 42.9 | 23 | 5.5 |
| 108 | IS/IR125-100-200 | 2900 | 200 | 50 | 45 |
| 109 | IS/IR125-100-200 | 1450 | 100 | 12.5 | 7.5 |
| 110 | IS/IR125-100-200A | 2900 | 187 | 44 | 37 |
| 111 | IS/IR125-100-200A | 1450 | 93.5 | 11 | 5.5 |
| 112 | IS/IR125-100-200B | 2900 | 173 | 38 | 30 |
| 113 | IS/IR125-100-200B | 1450 | 86.5 | 9.5 | 4 |
| 114 | IS/IR125-100-250 | 2900 | 200 | 80 | 75 |
| 115 | IS/IR125-100-250 | 1450 | 100 | 20 | 11 |
| 116 | IS/IR125-100-250A | 2900 | 187 | 70 | 55 |
| 117 | IS/IR125-100-250A | 1450 | 93.5 | 17.5 | 7.5 |
| 118 | IS/IR125-100-250B | 2900 | 173 | 60 | 45 |
| 119 | IS/IR125-100-250B | 1450 | 86.5 | 15 | 5.5 |
| 120 | IS/IR125-100-315 | 2900 | 200 | 125 | 110 |
| 121 | IS/IR125-100-315 | 1450 | 100 | 32 | 15 |
| 122 | IS/IR125-100-315A | 2900 | 191 | 114 | 90 |
| 123 | IS/IR125-100-315A | 1450 | 95.5 | 28.5 | 15 |
| 124 | IS/IR125-100-315B | 2900 | 182 | 103 | 75 |
| 125 | IS/IR125-100-315B | 1450 | 90.8 | 25.8 | 11 |
| 126 | IS/IR125-100-315C | 2900 | 172 | 92 | 75 |
| 127 | IS/IR125-100-315C | 1450 | 85.8 | 23 | 11 |
| 128 | IS/IR125-100-400 | 1450 | 100 | 50 | 30 |
| 129 | IS/IR125-100-400A | 1450 | 93.5 | 44 | 22 |
| 130 | IS/IR125-100-400B | 1450 | 86.5 | 38 | 18.5 |
| 131 | IS/IR150-125-250 | 1450 | 200 | 20 | 18.5 |
| 132 | IS/IR150-125-250A | 1450 | 187 | 17.5 | 15 |
| 133 | IS/IR150-125-250B | 1450 | 173 | 15 | 11 |
| 134 | IS/IR150-125-315 | 1450 | 200 | 32 | 30 |
| 135 | IS/IR150-125-315A | 1450 | 187 | 28 | 22 |
| 136 | IS/IR150-125-315B | 1450 | 173 | 24 | 18.5 |
| 137 | IS/IR150-125-400 | 1450 | 200 | 50 | 45 |
| 138 | IS/IR150-125-400A | 1450 | 187 | 44 | 37 |
| 139 | IS/IR150-125-400B | 1450 | 173 | 38 | 30 |
| 140 | IS/IR200-150-250 | 1450 | 400 | 20 | 37 |
| 141 | IS/IR200-150-250A | 1450 | 374 | 17.5 | 30 |
| 142 | IS/IR200-150-250B | 1450 | 346 | 15 | 22 |
| 143 | IS/IR200-150-315 | 1450 | 400 | 32 | 55 |
| 144 | IS/IR200-150-315A | 1450 | 374 | 28 | 45 |
| 145 | IS/IR200-150-315B | 1450 | 346 | 24 | 37 |
| 146 | IS/IR200-150-400 | 1450 | 400 | 50 | 90 |
| 147 | IS/IR200-150-400A | 1450 | 374 | 44 | 75 |
| 148 | IS/IR200-150-400B | 1450 | 346 | 38 | 55 |
| 149 | IS/IR250-200-315 | 1450 | 590 | 28.5 | 75 |
| 150 | IS/IR250-200-400 | 1450 | 600 | 45 | 110 |
| 151 | IS/IR300-250-315 | 1450 | 950 | 28.5 | 110 |
| 152 | IS/IR300-250-400 | 1450 | 950 | 45 | 200 |
| 153 | IS/IR350-300-315 | 1450 | 1510 | 28.5 | 160 |
| 154 | IS/IR350-300-400 | 1450 | 1510 | 45 | 250 |
